combined probability diagrams

there are various diagrams that can be used to help calculate combined probabilities (two events, with and without replacement)

a suggested progression:

• array
• route
• frequency tree
• probability tree

a route diagram may help students to appreciate why you multiply along the branches

with replacement powerpoint
without replacement powerpoint


with replacement:

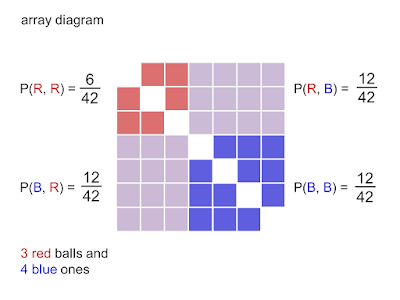

without replacement the diagonal is removed (because you can't pick the same ball twice):
